Current Transformers for measuring the current of your compressors and machines
VPInstruments Current Transformer
Measure compressor efficiency
Click to enlarge

3 Phase Power Meter

The VPInstruments 3 Phase Power Meter is the highly accurate power meter for your permanent power measurements. With the power meter you can measure the voltage and current of all three phases. Get the complete picture as the sensor provides power, voltage, current, cos(phi) and many more electrical parameters. Via the RS485 (Modbus RTU) interface you can connect the 3 Phase Power Meter to any building or energy management system for your readout and further analysis.

Download brochure


Request a non-binding quote
Ask us a question

Go to our webshop.

Compare
  • Description
  • Specifications
  • Brochure
  • Manual
Description

“VPInstruments has a wide range of product to add value to my customers’ facilities. I’ve partnered with them through multiple employers. Products and customer service make doing business and partnering with VPInstruments seamless.”

 – Eric Sams, Michigan Air Solutions LLC

3 Phase Power Meter highlights

  • True RMS power measurement of single-phase or three-phase systems
  • One size fits all: one model for 100 to 600 Vac, 50 / 60Hz
  • RS485 (Modbus RTU) output
  • Wye or delta in one model
  • For permanent installation
  • 0.3333 VAC input for current transformers (CT)
  • LED indicator for CT status and serial communication
  • Configurable using Modbus

 Applications

  • Power consumption of large consumers (i.e. compressors, dryers, pumps, water chillers)
  • Submetering
  • Cost allocation
  • Baseline condition monitoring
  • Energy management
  • Efficiency calculations (i.e. compressor electrical usage vs output)

3 Phase Power Meter package

Complete your 3 Phase Power Meter with current transformers. For each phase measured, you will need a current transformer. Check the maximum amperage and select the right transformer for your 3 Phase Power Meter.

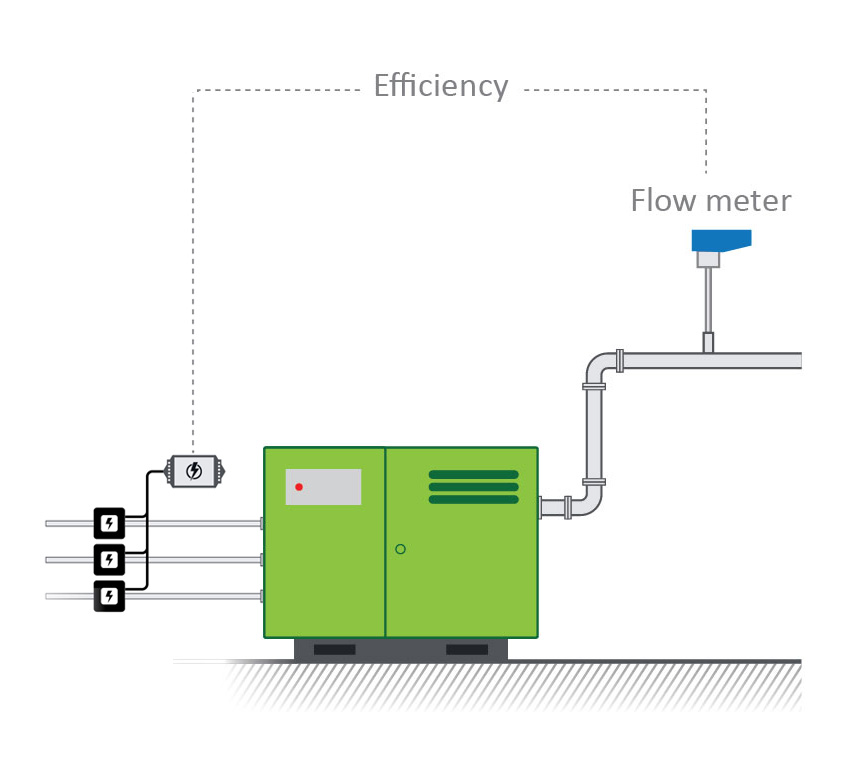

Monitor your compressor performance and efficiency

You can combine the power meter with one or more flow meters to monitor the compressor efficiency in real-time.

Specifications

Specifications

Accuracy +/- 0.5% reading
Power supply Power from measured voltage < 2 W
Voltage input 100 .. 600 (L to N), 100 .. 600 (L to L)
Current input 5 .. 1500 Amps per phase
Output RS485 (Modbus RTU), 2 wire
Size 153 x 85 x 38 mm | 6.02 x 3.35 x 1.50”
Weight 307…314 gram | 10.8…11.1 oz
Environment Indoor use
Operational temperature -30…55 °C | -22…131 °F
Operational humidity Non-condensing, 5 to 90% relative humidity
Operating frequencies 50 / 60 Hz
Brochure

Brochure

  • Brochure

Brochure

pdf

Brochure 3...

Size: 1.46 MB
Hits: 8
Date added: 24-06-2019
Date modified: 09-09-2020
DownloadPreview
pdf

Brochure 3...

Size: 1.47 MB
Hits: 12
Date added: 24-06-2019
Date modified: 09-09-2020
DownloadPreview
Manual

Manual

  • Manual

Manual

pdf

Manual 3 P...

Size: 753.85 KB
Hits: 0
Date added: 10-09-2020
Date modified: 04-02-2021
DownloadPreview

You may also like…

VPFlowScope Display with 3 line display, key pad and optional built-in data logger
VPFlowScope DP for hot and saturated compressed air measurements
Close

VPFlowScope DP flow meter

The VPFlowScope DP is designed for wet and dirty compressed air flow measurement.

Close

VPVision

VPVision is the complete real-time energy monitoring solution for all utilities within your company.
