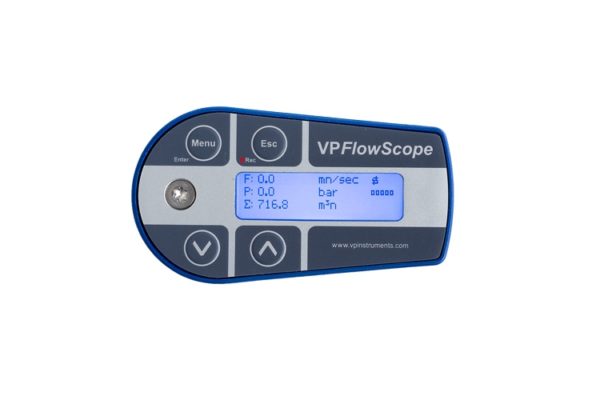

VPFlowScope Display with 3 line display, key pad and optional built-in data logger
VPFlowScope DP for hot and saturated compressed air measurements
VPFlowScope start kit

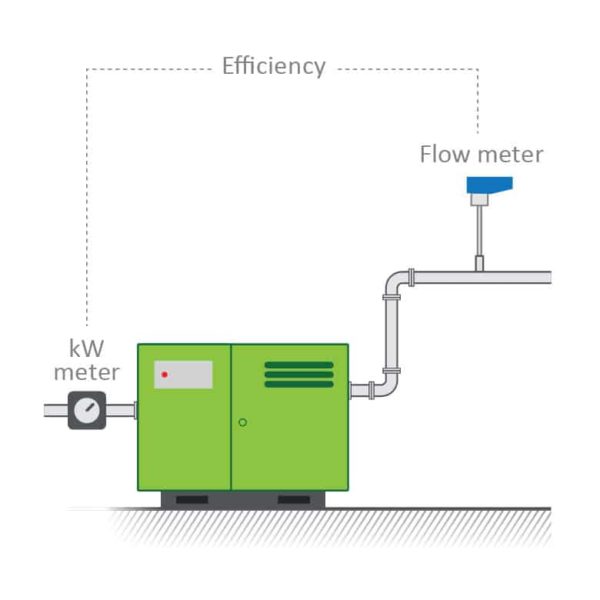

Measure compressor efficiency
VPStudio software for VPFlowScope
Click to enlarge

VPFlowScope DP flow meter

The VPFlowScope® DP is the ultimate measurement tool for saturated compressed air flow measurements. The unique design enables you to take measurements in the discharge pipe of a compressor under 100% saturated conditions. You can combine the probe with two display module types or with a connector cap without display.

Download brochure


Request a non-binding quote
Ask us a question

Or go to our webshop.

Compare
  • Description
  • Specifications
  • Brochure
  • Manual
  • Software
Description

“For manufacturers using compressed air VPInstruments provides excellent measurement solutions including flow meters, dew point sensors and monitoring systems that allow you to identify and eliminate energy losses in your factory. Kudos to the VPInstruments Team.”

 – Mathew Waita, Ren Engineering Solutions

Your DP flow meter for saturated compressed air flow measurements

The VPFlowScope® DP flow meter measures mass flow, temperature and pressure simultaneously and is optimized for hot, saturated compressed air measurements. The design of this differential pressure flow meter for wet air has a bright blue LCD display which provides real-time information of the dP measurement. In combination with the built-in data logger this enables you to make recordings for certain periods of time. In turn, you can use our VPStudio software to process this data and print reports for real-time measurements.

Features and benefits of this compressed air flow meter

  • For saturated compressed air
  • For hot compressed air
  • Four sensors in one instrument
  • Standard Modbus and 4 … 20 mA
  • Bi-directional flow measurements

Applications of this differential pressure flow meter

  • Air audits
  • Compressor efficiency monitoring
  • Air treatment equipment (drier/filter) monitoring

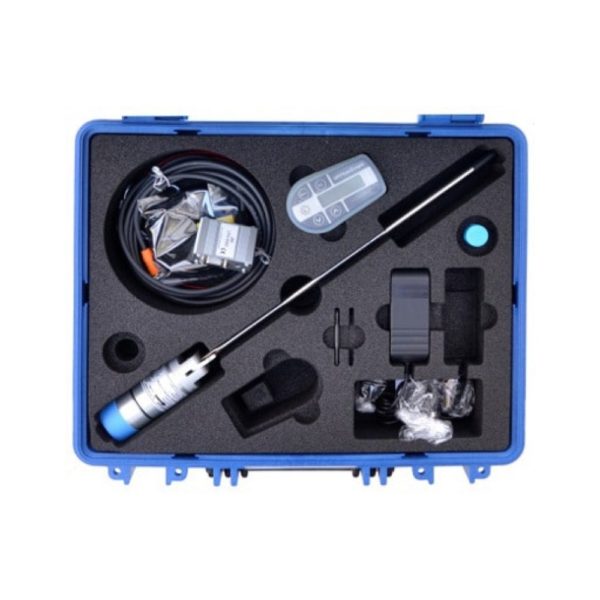

One-stop shopping: VPFlowScope DP start kit

VPInstruments offers a VPFlowScope DP flow meter start kit; an entire set of everything you need to get started immediately for a very affordable price. You don’t have to worry about ordering everything separately or to gather everything you need in order to do an audit or an installation. You just order the kit and away you go.

It includes:
  • The VPFlowScope DP Probe
  • A three-row LCD display with 2.000.000 data points data logger
  • Flow direction sensitivity
  • A rugged explorer case
  • An interface box JB5 with 5m/16,4 ft cable (M12 connector) + 12V power supply
  • An RS485 to USB cable
  • A compression fitting with Teflon ferrule
  • A safety cable
  • A calibration report
  • An English user manual
  • VPStudio software
Specifications

Specifications

Flow 20 … 200 mn/sec |65 … 650 sfps
Bi-directional Standard
Pressure 0 … 16 bar | 0 … 250 psi gauge
Temperature -40 … 150 °C | -40 … 302 °F. Icing should be avoided
Gas types Wet compressed air, dry compressed air, nitrogen and inert gases
Output RS485 (Modbus RTU) digital | 4 … 20 mA analog
Probe length 400 mm | 15″
Power supply 12 … 24 VDC
Approvals CE, UL/CUL
