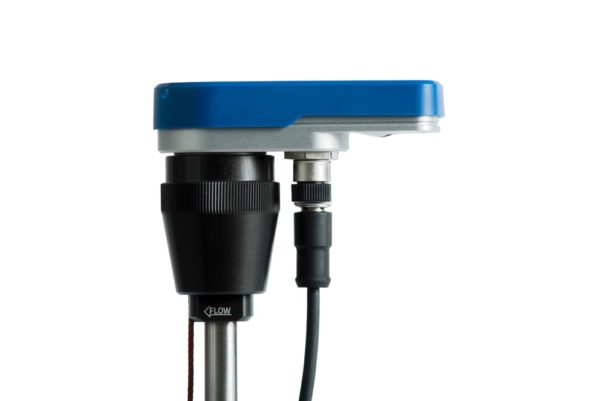

VPFlowScope M the industry 4.0 flow meter with Ethernet
VPFlowScope M Start Kit
VPFlowScope M Start Kit
VPStudio software for VPFlowScope flow meters
Click to enlarge

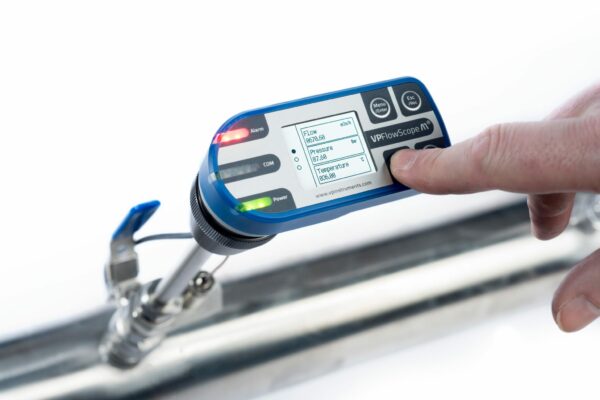

VPFlowScope M flow meter

With the VPFlowScope® M you are ready for the future. This next-generation flow meter is Industry 4.0/IOT ready. Next to 4 .. 20 mA and RS485 (Modbus RTU), it also has a built-in Ethernet (Modbus/TCP) interface, making it easy to connect directly to any network. It can be installed under pressure and measures (bi-directional) thermal mass flow, pressure, temperature and total flow simultaneously.

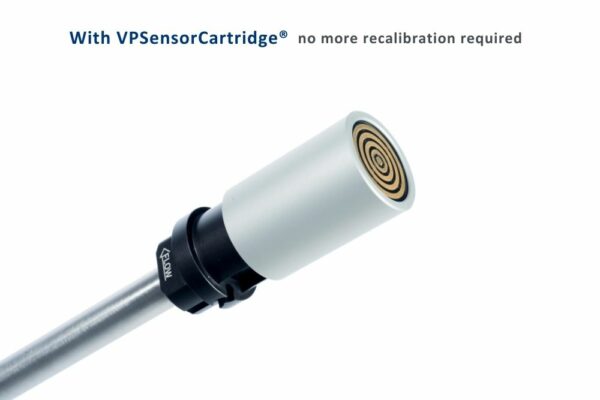

Unlike traditional flow meters, the VPFlowScope M does not require traditional recalibration, where you have to ship the unit back. Instead, the VPFlowScope M consists of a Transmitter and the patented VPSensorCartridge® which reduces recalibration to a simple exchange.

Download brochure


Request a non-binding quote
Ask us a question

Or go to our webshop.

Compare
  • Description
  • Specifications
  • Brochure
  • Manual
  • Software
  • Video
Description

“I have been a VPInstruments user for over 5 years now and can attest to their product and especially service. The equipment is top of the line and ahead of the competition in detection and performance. They are constantly developing to the needs of the end user.”

 – Bryan Young, Pierce Pump Co.

All-in-one flow meter for compressed air and technical gases

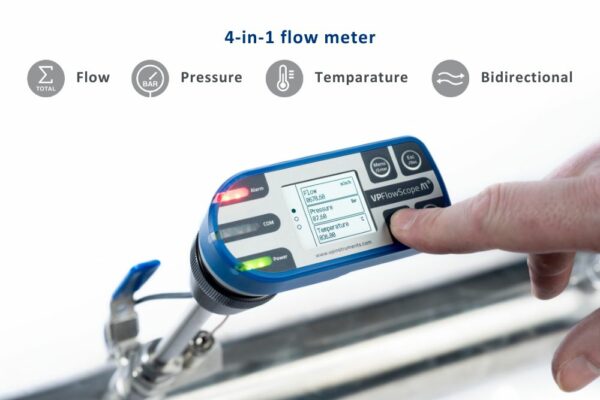

The VPFlowScope® M is a four-in-one bidirectional flow meter for compressed air, nitrogen, oxygen, helium, argon and other industrial gases. It measures bi-directional flow, pressure, temperature and totalized flow, simultaneously. The optional data logger has a 1-year automated retention policy.

Features and benefits of this flow meter for compressed air

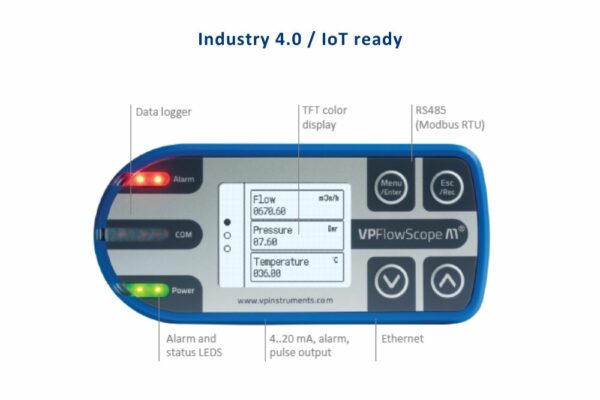

  • Four sensors in one instrument
  • For compressed air and technical gases
  • VPSensorCartridge®: no more recalibration required
  • Ethernet interface: Industry 4.0/IOT ready
  • Ultra-compact size and low weight
  • Ethernet (Modbus/ TCP)
  • RS485 (Modbus RTU)
  • 4..20 mA linearized, pulse mode or alarm output
  • USB interface for configuration and downloading of data log files
  • Optional TFT display
  • Optional data logger
  • Optional: Bi-directional flow measurement

Applications of this compressed air flow meter

  • Demand-side compressed air monitoring
  • Air audits
  • Submetering of compressed air
  • Ring networks (bi-directional)
  • Industrial gas monitoring (air, nitrogen, carbon dioxide, argon and other dry, noncorrosive industrial gases)
  • Cost allocation
  • Leak detection

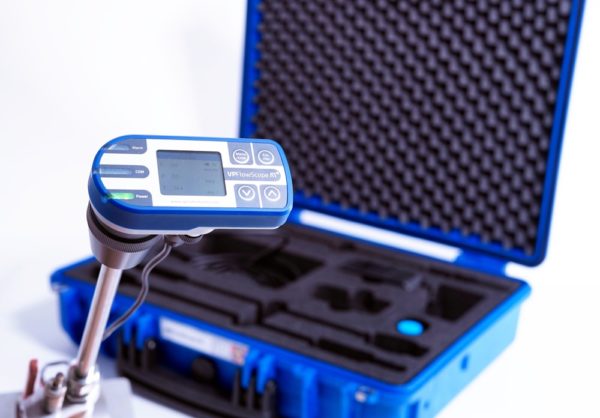

One-stop shopping: VPFlowScope M start kit

VPInstruments offers a VPFlowScope M start kit; an entire set of everything you need to get started immediately for a very affordable price. You don’t have to worry about ordering everything separately or gathering everything you need in order to do an audit or an installation. You just order the kit and off you go.

It includes:
  • VPFlowScope M Transmitter with display + data logger (1 year @ 1 second interval)
  • VPSensorCartridge (0..150 mn/sec, 0..10 bar, 0..60 deg C)
  • Bi-directional option
  • Mini USB cable
  • 24V Power supply
  • Compression fitting with proprietary, adjustable safety cable
  • Cable 5m/16.4ft for ethernet with 4-pin M12 and RJ45 connector
  • Rugged blue explorer case
  • ISO Calibration report
  • English user manual
  • VPStudio software (downloadable from our website)
Specifications

Specifications

Display Optional
Data logger Optional
Outputs RS485 (Modbus RTU) | 4 … 20 mA output or pulse or alarm | Mini USB, behind sealed cap (for configuration | Ethernet
Dimensions 50 x 108 x 36 mm | 1.97 x 4.25 x 1.42 inch
Weight 220 grams | 7.76 ounces
Protection grade IP65 | NEMA 4 when mated to VPSensorCartridge
Power supply 12 VDC … 24 VDC +10% Class 2 (UL)
Power Consumption 1 Watt (no flow) 3.5 Watt (full flow) +/- 10% | Varies per VPSensorcartridge type and Transmitter type
Approvals EN 60950-1, EN 61326-1, EN 61000-3-2, EN 61000-3-3, EN 61326-1,  UL 508
