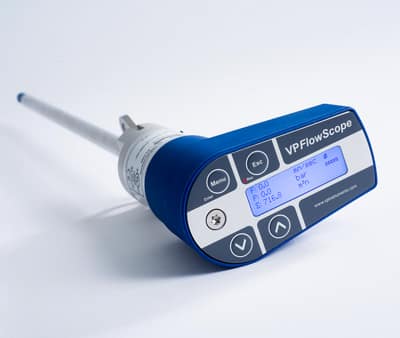

The VPFlowScope® Probe is the number one measurement tool for compressed air audits and fixed installations. You can combine the probe with two display module types or a connector cap without display. With the VPFlowScope Probe you can measure virtually any compressed air system using a single instrument .
Or go to our webshop.
“VPInstruments has a wide range of product to add value to my customers’ facilities. I’ve partnered with them through multiple employers. Products and customer service make doing business and partnering with VPInstruments seamless.”
– Eric Sams, Michigan Air Solutions LLC
The VPFlowScope® Probe measures mass flow, temperature and pressure simultaneously. This probe can handle various diameters and measures in both directions. This makes it the ultimate compressed air audit tool used by leading auditors worldwide. Although the VPFlowScope Probe has been designed for dry compressed air, we also have a measuring probe for wet compressed air: the VPFlowScope DP.
The bright blue LCD display provides real-time information and with the built-in data logger, you can record for certain periods of time. Combine this with our VPStudio software on your pc and you can use this information to process data, print reports and analyze where and how exactly you can save money.
VPInstruments offers a VPFlowScope thermal mass probe start kit; an entire set of everything you need to get started immediately for a very affordable price. You don’t have to worry about ordering everything separately or to gather everything you need in order to do an audit or an installation. You just order the kit and the way you go.
| Flow | 0.5 … 150 mn/sec | 0 … 500 sfps |
| Bi- directional | Optional |
| Pressure | 0 … 16 bar G | 0 … 250 psi gauge |
| Temperature | 0 … +60 °C | 0 … +140 °F |
| Gas types | Compressed air, nitrogen and inert, non condensing gases |
| Outputs | RS485 (Modbus RTU) |
| Probe length | 400 mm (300, 600 mm on request) |
| Power supply | 12 … 24 VDC+/- 10% Class 2 (UL) |
| Approvals | CE, UL/CUL |
Download VPstudio from our software webpage. Click here.
