VP Dew Point Sensor

Encountering humidity in your pipes is acceptable to a certain level, but you don’t want to exceed the acceptable limits. In order to stay in control of your humidity by managing your temperature and pressure levels you need dew point transmitters.

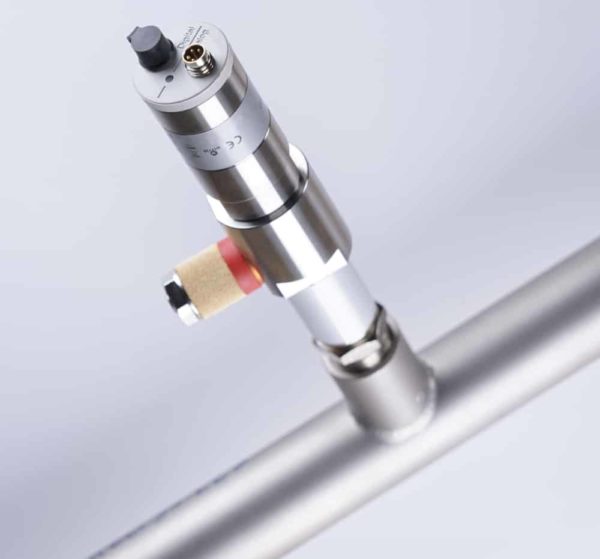

The VP Dew Point Sensor is the smart dew point transmitter with a large measurement range of -70..+60 ⁰C, so you can measure downstream a refrigerant type dryers as well as a desiccant-type dryer. The sensor has multiple outputs, alarm LED, and built-in autocalibration.

Download brochure

Request a quote

Go to webshop

Description
Additional information
Specifications
Documentation

Description

The VP Dew Point Sensor is the complete and smart Dew Point Sensor for all your measurement applications. The sensor is robust and smart with its autocalibration functionality. With the outputs both 4..20 mA and RS485 (Modbus RTU), you can connect the sensor to VPVision, VPCompass or any other management system.

Features and benefits

Built-in alarm function and LED
Sensor highly resistant to condensation and particulate contamination
RS485 (Modbus RTU) and 4..20 mA output
Auto-calibration
Optional display
Optional sample block with bleed valve

Application

Monitoring of refrigerant and desiccant-type air dryers
Sizing of dryers
Permanent measurement
Guarding of critical process e.g. in semiconductor and automotive industry

VP Dew Point Sensor Start Kit:

The VP Dew Point Sensor is available in a complete start kit. The start kit contains:

VP Dew Point Sensor
Sampling block
Cable 10m / 32.8ft
Quick connector
1/4″ Male connector
Leak screw with sound muffler
Calibration certificate

Car manufacturer optimized compressors controls significantly

From West US, an automatic car manufacturer has a savings potential of $600,000 USD on their compressed air system. Want to know how? Contact us today to learn more.

Additional information

Sampling block	Create the optimum gas flow over de sensor for stable and continuous accurate measurements.

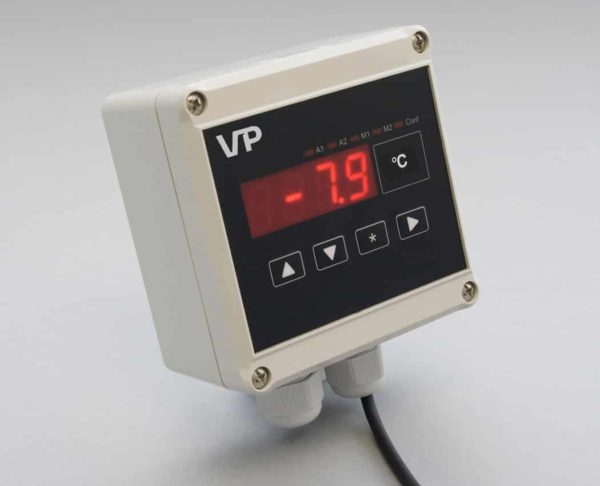

External Display 420	Monitor your dew point locally with the External Display 420. The display has a built-in alarm relay, which can be used to trigger an external alarm, for example via your BMS/ SCADA system.

Specifications

Dew point range	-70 … +60° C \| -94 … 140° F dew point
Temperature	-40 … +60° C \| -40 … 140° F
Humidity	0 … 100% RH
Pressure	0..50bara \| 725 psia
Output	4 … 20 mA and RS485 (Modbus RTU)
Sensor	This film polymer
IP	IP66 \| NEMA 4
