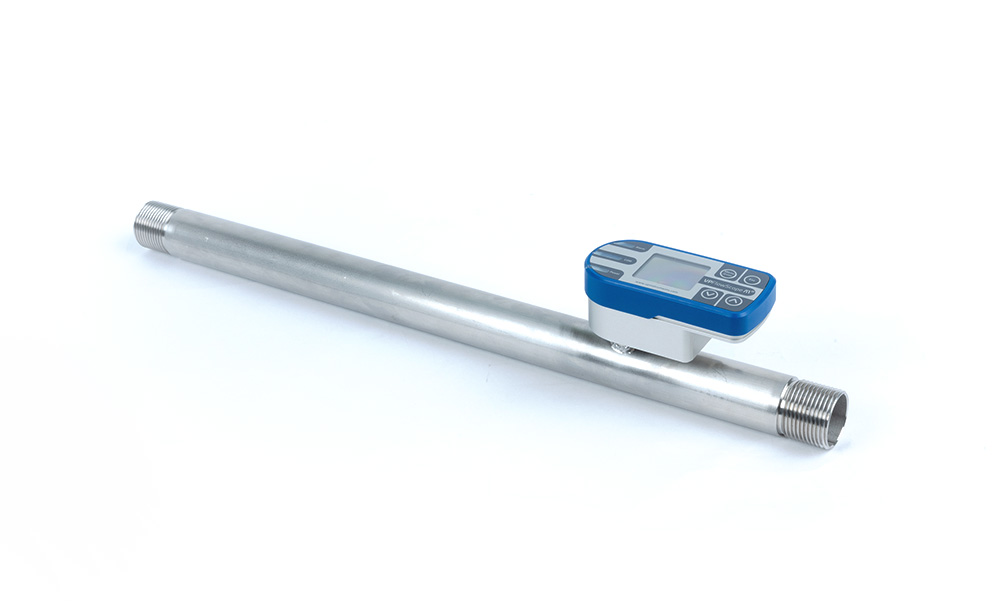

VPFlowScope M Thermal In-line flow meter

The new Industry 4.0 VPFlowScope® M Thermal In-line is the ideal flow meter for point-of-use consumption measurements of compressed air and other industrial gases, including nitrogen, CO2, helium, argon and more. Thanks to our proprietary Thermabridge™ technology, you can measure bi-directional flow, pressure, temperature, and total flow simultaneously.

The flow meter is perfect for smaller diameters, as can be found in the demand side of your air/gas network, point of use, or in small to medium size compressed air systems. It provides all the data you need to optimize your consumption. Whether standalone or integrated into an energy management system like VPVision, there is a version to fit your needs.

Download brochure

Request a non-binding quote

Description

What is the VPFlowScope M Thermal In-line Flow meter?

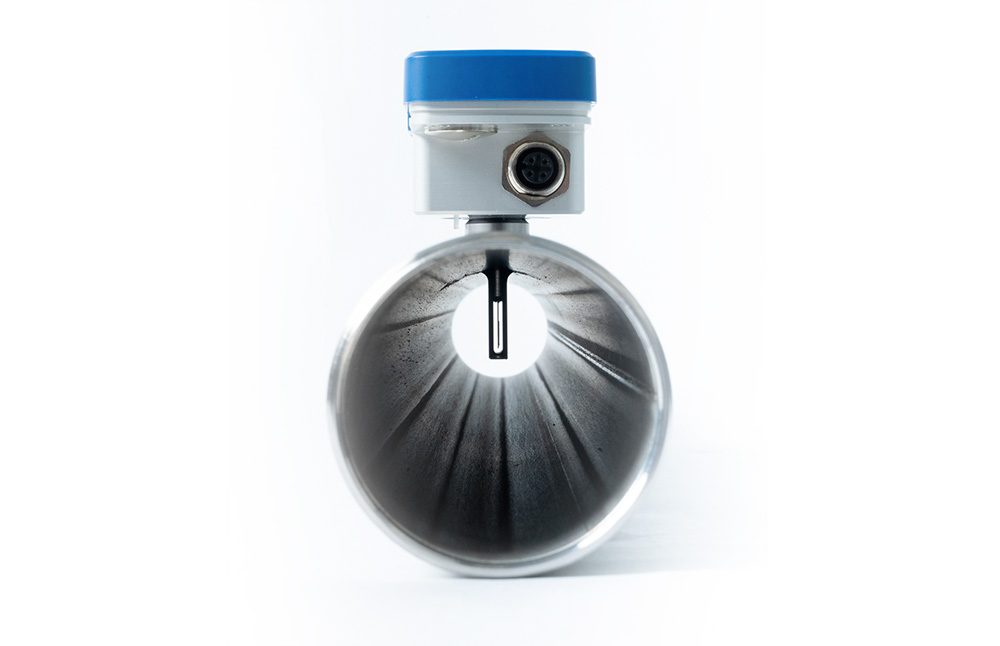

The VPFlowScope M Thermal In-line is a thermal in-line flow meter designed for accurate and reliable bi-directional flow measurement of compressed air and industrial gases. This 4-in-1 instrument measures bi-directional flow, pressure, and temperature simultaneously, giving you a complete and detailed overview of your compressed air or gas system.

For example; easily identify whether pressure drops are caused by excessive flow, or find opportunities to reduce air consumption while maintaining the required pressure level. With bidirectional flow measurement, you can avoid misreadings in overlooked branches or from leaking non-return valves. Every VPFlowScope flow meter comes with a calibration report for full traceability and guaranteed accuracy. With no hidden costs.

Highlights of this compressed air and industrial gas flow meter

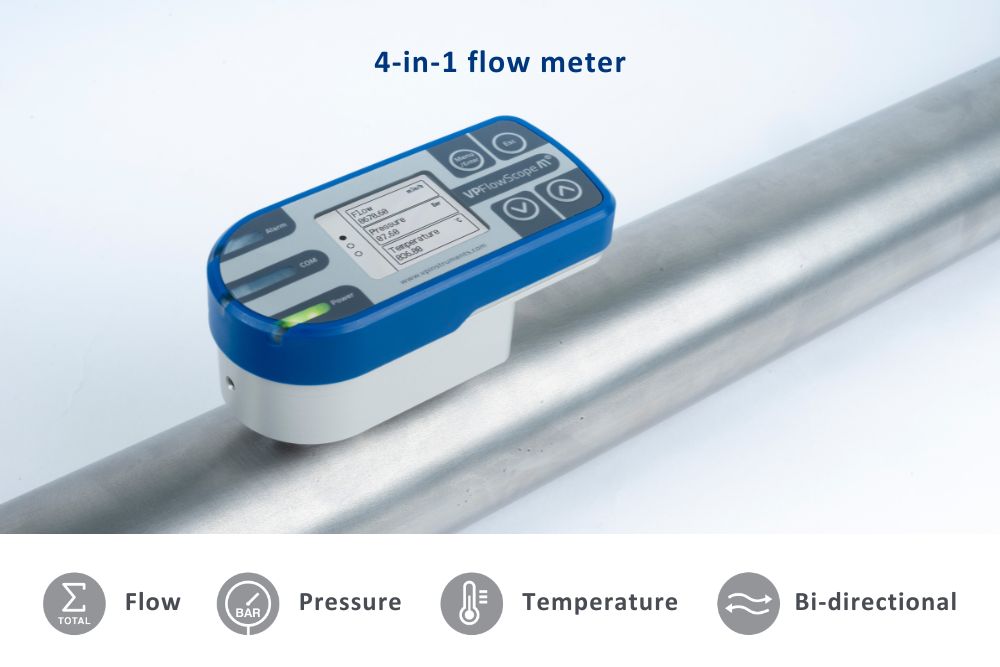

4-in-1 sensors in one instrument

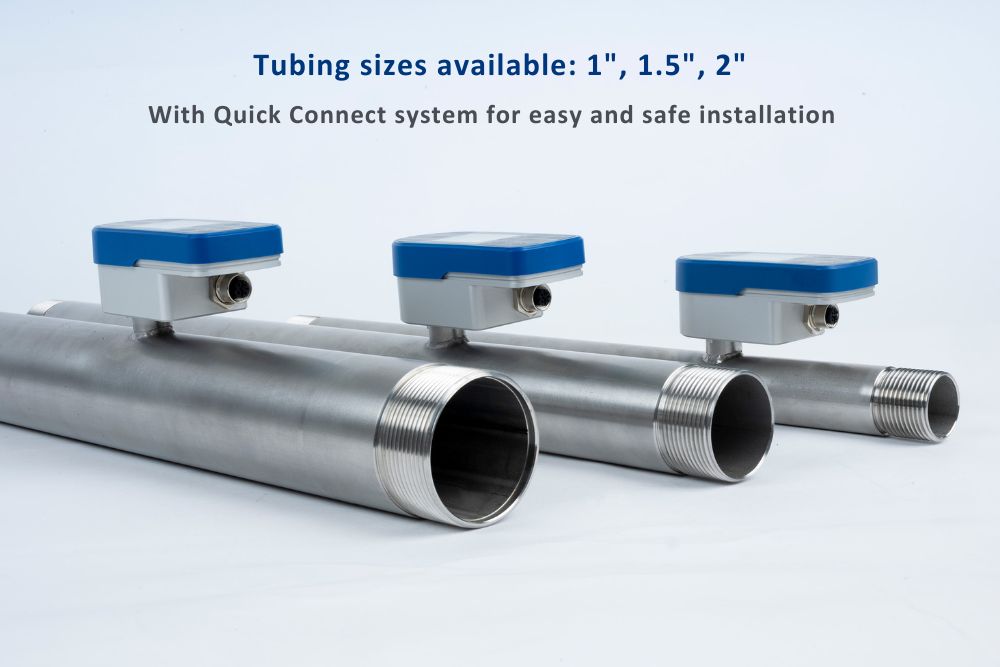

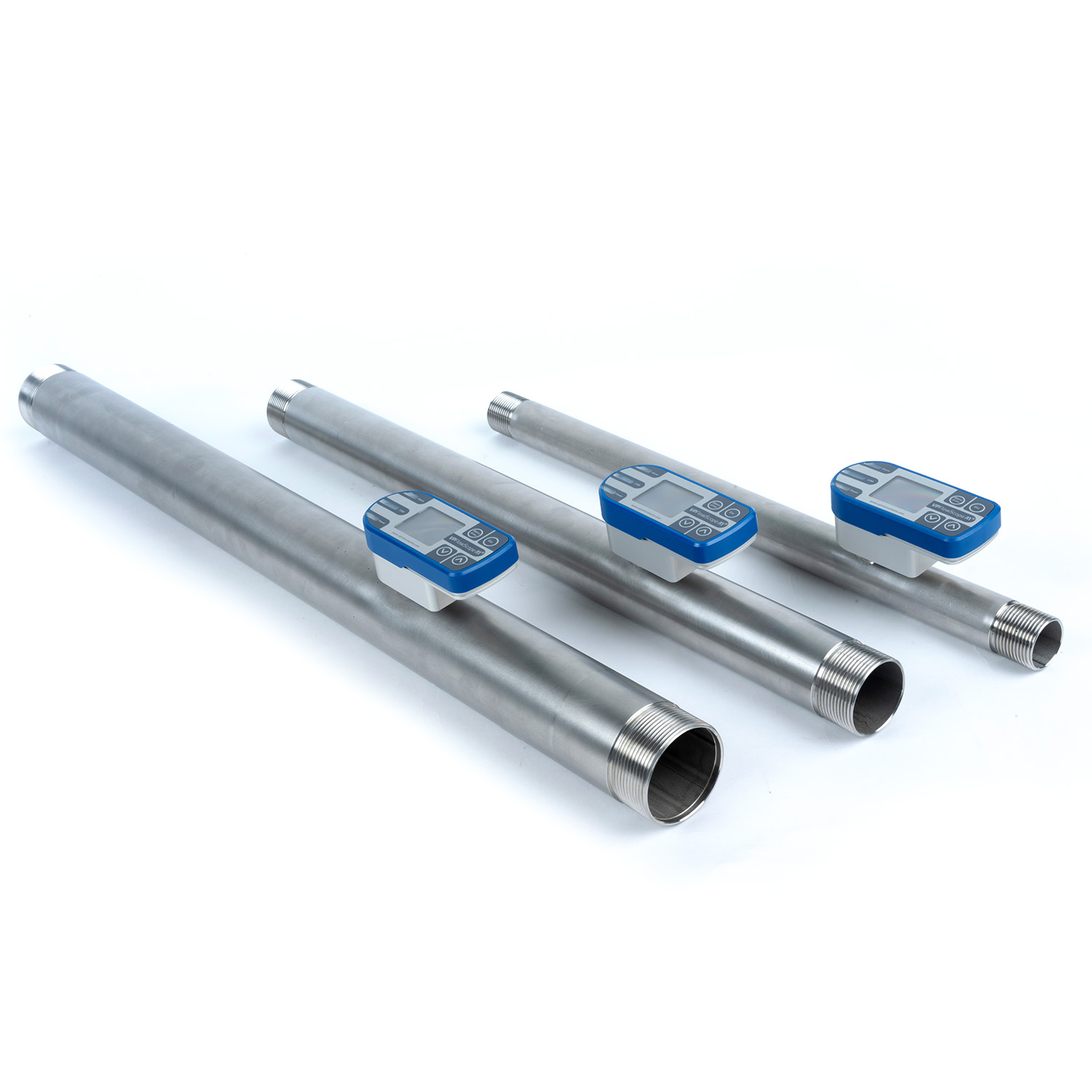

For smaller diameters: 1″ tot 2″

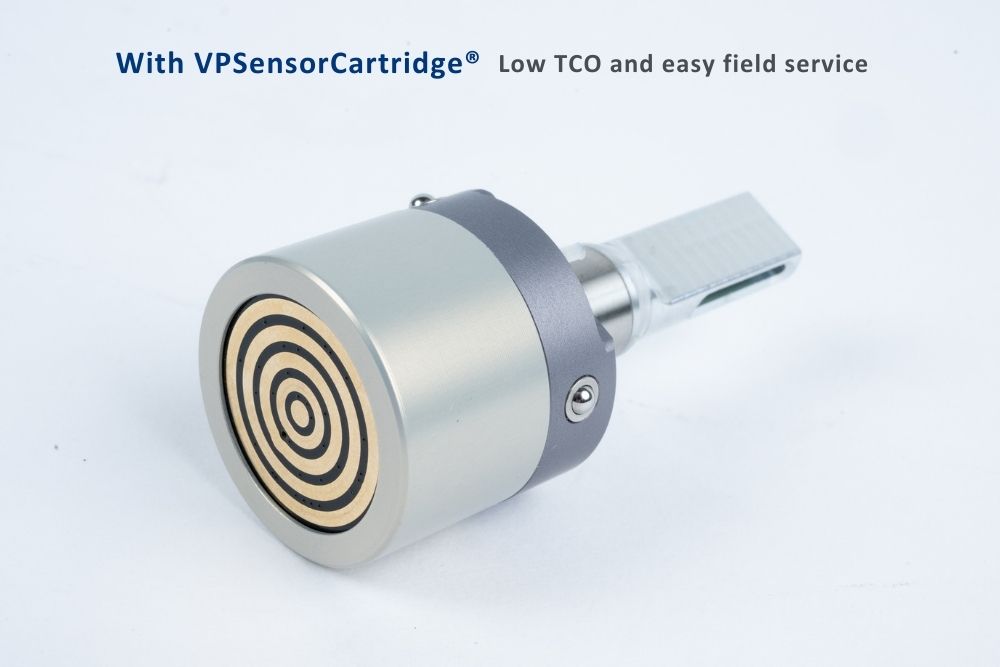

Lowest TCO and easy field service with patented VPSensorCartridge
Quick Connect system for easy and precise installation
Versatile outputs: PoE or Modbus, analogue with optional alarm mode
Seamless integration into VPVision energy monitoring platform

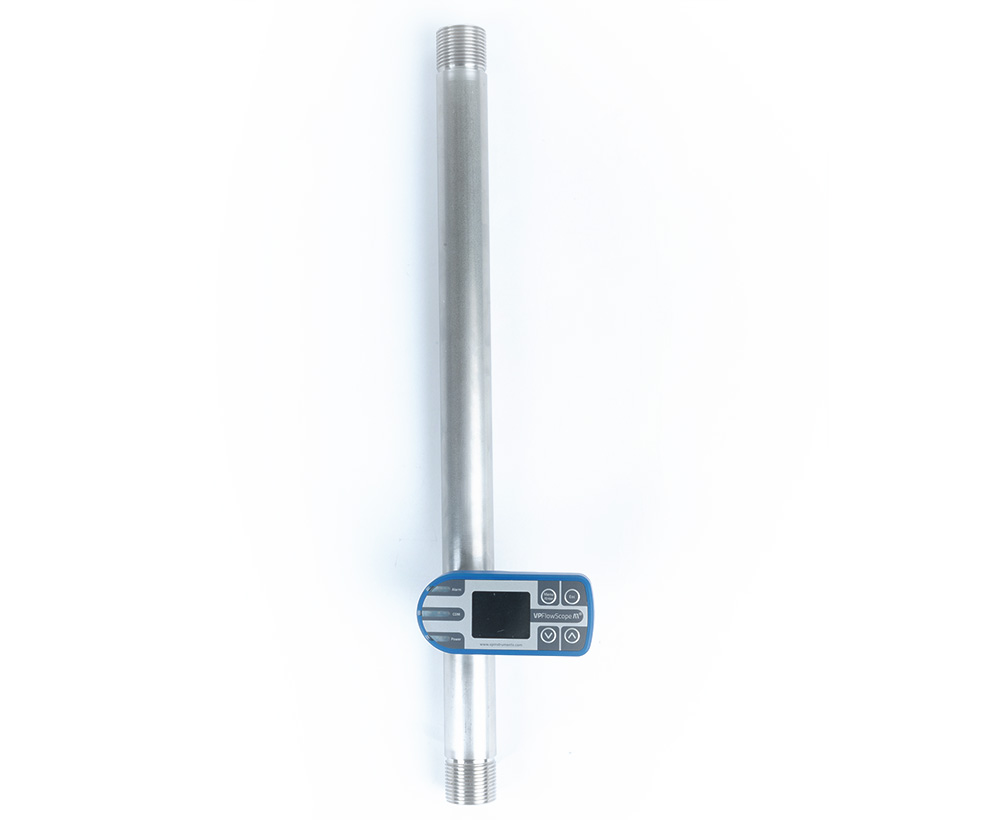

Optional display with real-time information
Optional integrated data logger for audits

Applications of this flow meter

Compressed air measurement
Industrial gas monitoring (N2, He, Ar, CO2, and other dry, non-corrosive industrial gases)
Submetering
Leakage management
Energy monitoring
Cost allocation
Pneumatic equipment condition monitoring

Be green with VPCartridgeSwap+

Support sustainability by returning your used VPSensorCartridges. Each returned Cartridge is refurbished for reuse, reducing waste and conserving resources. You’ll receive a refund—and as a bonus, VPInstruments will plant a tree on your behalf for every Cartridge returned. Read more about VPCartridgeSwap+.

Video

https://youtu.be/cEka8l2gWnU

Specifications

Display	Optional
Data logger	Optional
Flow range 1 inch	0..250 m3n/hr \| 0..156 SCFM
Flow range 1.5 inch	0..600 m3n/hr \| 0..374 SCFM
Flow range 2 inch	0..1000 m3/hr \| 0..623 SCFM
Gas temperature	0..+50 degC \| 32..122 degF
Pressure range	0..16 bar \| 0..234 psi
Outputs	RS485 (Modbus RTU) and analog or PoE (Modbus TCP)
Approvals	EN 60950-1, EN 61326-1, EN 61000-3-2, EN 61000-3-3, EN 61326-1, UL 508
