VPFlowTerminal remote display for your VPFlowScope flow meters
Click to enlarge

VPFlowTerminal

The VPFlowTerminal is a plug & play wall mount display with built-in power supply and two million point data logger.

Download brochure


Contact
Go to webshop
Compare
  • Description
  • Specifications
  • Brochure
  • Manual
Description

The VPFlowTerminal is a plug & play wall mount display with built-in power supply and two million point data logger. The VPFlowTerminal has five sensor inputs: one input for a VPFlowScope in-line or VPFlowScope insertion meter and four generic analog inputs. It can record up to eight channels. This makes the collection and analysis of your compressed air data easier and quicker!

Features/ Benefits

  • Two million point data logger
  • VPFlowScope input
  • Four analog input channels
Specifications

Specifications

Input voltage 100 … 240 Vac mains (pre-wired)
Display Liquid crystal (LCD), 3 lines
Back light blue with auto power save
Data logger Two million point data logger
Signal inputs VPFlowScope + four optional 4 … 20 mA sensors (non-isolated, loop powered)
Sensor power supply 24 VDC
Maximum sensor current 4 x 25 mA for analog sensors, 1 x 150 mA for VPFlowScope
Flow meter connection M12, 8 pin
Dimensions l x b x h = 23 x 130 x 75 mm | 9.1 x 5.1 x 2.95″
Weight 1.6 kg | 3.53 lbs
Brochure

Brochure

  • Brochure

Brochure

pdf

Brochure V...

Size: 293.94 KB
Hits: 3
Date added: 24-06-2019
Date modified: 06-12-2018
DownloadPreview
pdf

Brochure V...

Size: 293.09 KB
Hits: 9
Date added: 24-06-2019
Date modified: 26-11-2018
DownloadPreview
pdf

Brochure V...

Size: 125.16 KB
Hits: 4
Date added: 24-06-2019
Date modified: 18-03-2015
DownloadPreview
Manual

Manual

  • Manual

Manual

pdf

Manual VPF...

Size: 620.82 KB
Hits: 21
Date added: 24-06-2019
Date modified: 13-03-2023
DownloadPreview

You may also like…

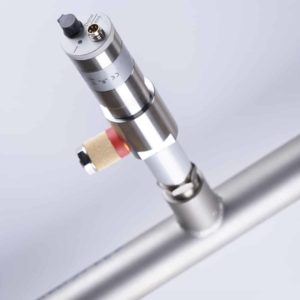

VP Dew Point Sensor for air and gas systems

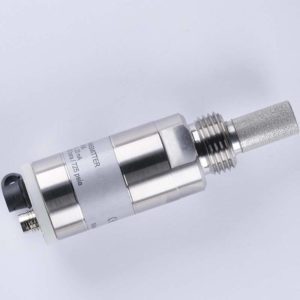

VPInstruments VP Dew Point Sensor Transmitter
